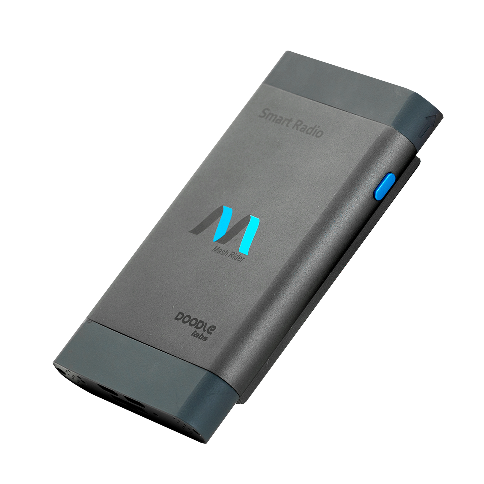

Name: Doodle Labs 2.4 GHz Smart Radio Xtreme Wearable External
SKU: RM-2450-2K-XWE
Price: 1600.00 EUR
Availability: PreOrder

Description

Plateforme radio Mesh Rider

La radio Mesh Rider® fournit des liaisons résilientes, à faible latence, à longue portée et à haut débit pour mettre en œuvre des réseaux maillés mobiles sans fil privés de qualité industrielle.

Bande WiFi 2,4 GHz

La bande des 2,4 GHz est libre de licence dans la plupart des pays du monde. Elle peut être utilisée à toutes fins. Aux États-Unis, au Canada, en Amérique centrale et en Amérique latine, les modems sont autorisés à transmettre jusqu’à 4 W de PIRE (radio de 30 dBm + antenne de 6 dBi) pour réaliser des liaisons de plusieurs kilomètres de long pour les applications IIoT comme les drones et les robots terrestres.

Mesh Rider

Une radio maillée de petite taille et de haute performance conçue pour les systèmes sans pilote. La radio Embedded Mesh Rider® est une radio robuste qui intègre tous les avantages de Mesh Rider dans un facteur de forme optimisé en termes de taille, de poids et de puissance.

Distance de la liaison

La forme d’onde Mesh Rider® Radio a été testée sur le terrain par des clients pour fournir une liaison de plus de 100 km. La distance de liaison de chaque système dépend toutefois de nombreux facteurs : principalement le gain de l’antenne, les obstructions de la ligne de visée, le dégagement de la zone de Fresnel et les conditions de bruit ambiant. Le tableau ci-dessous donne une indication des performances de la radio dans une configuration typique.

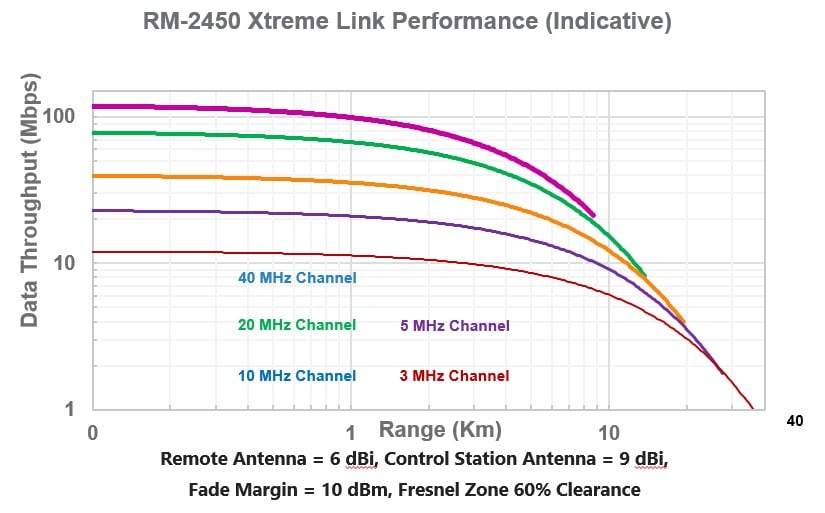

RM-2450 Xtreme Link Performance

Antenne distante = 6 dBi, Antenne de la station de contrôle = 9 dBi, Marge d’évanouissement = 10 dBm, Zone de Fresnel 60% de dégagement

PERFORMANCE OVERVIEW
Protocol Compatibility	Fully compatible with Wi-Fi (IEEE 802.11b,g,n)
Nano, Mini-OEM, Embedded, External: Max Operating Range (Indicative)	>20 Km (Recommended), (Max field demonstrated range >100km)
Wearable/OEM: Max Operating Range	Operating Range with Embedded Antennas in the backpack (Indicative): 500 Meters (1,600 feet)Operating Range with 3 dBi Attached Antennas in the backpack (Indicative): 1.6 Km (1 mile)Unobstructed Operating Range with 3 dBi Attached Antenna (Indicative): >8 Km (>5 Miles)
Over the Air Data Encryption	256-bit AES software encryption (12 Mbps max throughput) (FIPS140-2, Level 2 compliant)128-bit AES software encryption (90 Mbps max throughput)
Operating Modes	WiFi Radio: AP, Client Mesh Rider Radio: Mesh, WDS AP, WDS Client Bridged or Internet Gateway with NAT
Command & Control Channel	Ultra-Reliable Low Latency Channel (URLLC). Latency 3-30 ms
Video Channel	Optimized video streaming with Unicast and Multicast transmission
Spectrum Scan	Automatic spectrum scan on boot up
Mesh Automatic Transmit Power Control	Intelligently adjusts Tx output power based on signal strength. Allows the device to be utilized in a dispersed and dynamic mesh.

RF SPECIFICATIONS
Frequency Range	2400-2482 MHz
Max RF Power at SMA port (Software control) Each radio individually calibrated	1W (30 dBm) @ MCS 0,8 0.8W (29 dBm) @ MCS 3,11 0.4W (26 dBm) @ MCS 5,13 250mW (24 dBm) @MCS 7,15
Channel Sizes (Software Selectable)	3, 5, 10, 20 MHz
Radio Data Rate	Auto adapting Modulation Coding Scheme (MCS0-15)
Antenna Signal Strength	-25 to -85 dBm (Recommended), Absolute Maximum= +12 dBm
Embedded & External: Receiver LNA Gain	>10 dB
Wearable & OEM: Receiver LNA Gain	>20 dB
Mini-OEM: Receiver LNA Gain	>15 dB
RF Power Control	In 1 dBm steps, Tolerance ±1 dBm
Automatic Transmit Power Control (ATPC)	Intelligently adjusts the transmit power for very close range operation
Integrated Antenna Port Protection	Able to withstand open port, >10 KV (contact) and >15KV (open air discharge) as per IEC-61000-4-2
Wireless Error Correction	FEC, ARQ
Spectrum Scan	Automatic spectrum scan on boot up.

WIFI HOTSPOT RF SPECIFICATIONS (APPLICABLE TO WEARABLE & OEM MODELS ONLY)
WiFi Standard	IEEE 802.11n, 2×2 MIMO
Frequency Range	2400-2482 MHz
RF Power Output (Typ)	50 mW (17 dBm) EIRP
Channel Size	20 MHz
Radio Data Rate	Auto adapting Modulation Coding Scheme (MCS 0-15)
Antenna Signal Strength	-25 to -85 dBm (Recommended), Absolute Maximum= +12 dBm
Wearable & OEM: Receiver LNA Gain	>20 dB
RF Power Control	In 1 dBm steps, Tolerance ±1 dBm
Wireless Error Correction	FEC, ARQ

NETWORKING SPECIFICATIONS
Mesh Router	Self-Forming/Self-Healing, Peer to Peer
Custom Software Package Manager	Image Builder, OPKG, ipk
Radio Management	Web GUI (HTTPs), SSH, SNMP and JSON-RPC
Access control	Password, MAC, IP, Port filtering
Supported Protocols	IPv6, QoS, DNS, HTTPS, IP, ICMP, NTP, DHCP
Software Upgrade	Over the air software upgrade supported

ADDITIONAL MESH RIDER RF SPECIFICATIONS
Radio Data Rates (Dynamic Link Auto Adaptation)	MCS15 = 64QAM (5/6) MCS14 = 64 QAM (3/4) MCS13 = 64 QAM (2/3) MCS12 = 16QAM (3/4) MCS11 = 16QAM (1/2) MCS10 = QPSK (3/4) MCS9 = QPSK (1/2) MCS8 = BPSK (1/2) MCS7 = 64QAM (5/6) MCS6 = 64 QAM (3/4) MCS5 = 64 QAM (2/3) MCS4 = 16QAM (3/4) MCS3 = 16QAM (1/2) MCS2 = QPSK (3/4) MCS1 = QPSK (1/2) MCS0 = BPSK (1/2)
Rx Sensitivity (3 MHz Channel BW)	-100 dBm @ MCS 0 -97 dBm @ MCS 1 -95 dBm @ MCS 2 -92 dBm @ MCS 3 -87 dBm @ MCS 4 -85 dBm @ MCS 5 -82 dBm @ MCS 6 -79 dBm @ MCS 7 -97 dBm @ MCS 8 -93 dBm @ MCS 9 -91 dBm @ MCS 10 -88 dBm @ MCS 11 -84 dBm @ MCS 12 -80 dBm @ MCS 13 -79 dBm @ MCS 14 -78 dBm @ MCS 15
Rx Sensitivity (5 MHz Channel BW)	-98 dBm @ MCS 0 -95 dBm @ MCS 1 -93 dBm @ MCS 2 -90 dBm @ MCS 3 -85 dBm @ MCS 4 -83 dBm @ MCS 5 -80 dBm @ MCS 6 -77 dBm @ MCS 7 -95 dBm @ MCS 8 -91 dBm @ MCS 9 -89 dBm @ MCS 10 -85 dBm @ MCS 11 -82 dBm @ MCS 12 -78 dBm @ MCS 13 -77 dBm @ MCS 14 -76 dBm @ MCS 15
Rx Sensitivity (10 MHz Channel BW)	-96 dBm @ MCS 0 -93 dBm @ MCS 1 -91 dBm @ MCS 2 -88 dBm @ MCS 3 -83 dBm @ MCS 4 -81 dBm @ MCS 5 -78 dBm @ MCS 6 75 dBm @ MCS 7 -93 dBm @ MCS 8 -89 dBm @ MCS 9 -87 dBm @ MCS 10 -84 dBm @ MCS 11 -80 dBm @ MCS 12 -76 dBm @ MCS 13 -75 dBm @ MCS 14 -74 dBm @ MCS 15
Rx Sensitivity (20 MHz Channel BW)	-93 dBm @ MCS 0 -90 dBm @ MCS 1 -88 dBm @ MCS 2 -85 dBm @ MCS 3 -80 dBm @ MCS 4 -78 dBm @ MCS 5 -75 dBm @ MCS 6 -72 dBm @ MCS 7 -90 dBm @ MCS 8 -86 dBm @ MCS 9 -84 dBm @ MCS 10 -81 dBm @ MCS 11 -77 dBm @ MCS 12 -73 dBm @ MCS 13 -72 dBm @ MCS 14 -70 dBm @ MCS 15
Receive Adjacent Channel Rejection (ACRR)	>34 dB @ MCS0 for 20 MHz channel (Typ)
Receive Noise Figure	+4 dB
Transmitter Adjacent Channel Leakage Ratio (ACLR)	28 dBr (Fc ± ChBW)
Transmitter Spurious Emission Suppression	-40 dBc
Frequency Accuracy	±10 ppm max over life

REGULATORY INFORMATION
FCC ID	2AG87RM-2450-2H.
Industry Canada (IC)	21411-RM24502H
THIS	Fully Certified
Regulatory Requirements	Designed and verified to meet various regulatory requirements. Formal testing and approval are required for the Integrator’s antenna type. The integrator is responsible for obtaining all regulatory approvals in target markets for the finished product.
RoHS/WEEE Compliance	Yes. 100% Recyclable/Biodegradable packaging

Brand

Doodle Labs

Additional information

Weight	1 kg
Dimensions	30 × 25 × 23 cm
